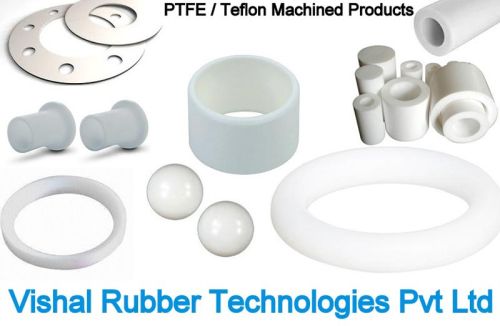

PTFE Products

We are offering ptfe machined products. Exercore engineering company is leading Manufacturer, Exporter & Supplier of ptfete  machined components in various sizes and materials.

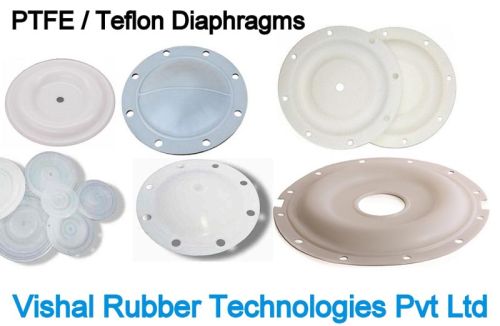

Exclusive PTFE Diaphragm material is a time proven product which is made using best of the technology and material used is offering longest cycle life in the industry which continues to outperform all competitive materials. These Diaphragms usually used in Pumps which proves to be durable and versatile. Containing high performance PTFE Sheet on the wetted side which in effect they last significantly longer than other conventional diaphragms. These Diaphragms profice dramatic improvement in service life and are considerably stronger, with greater flex life. Excellent chemical resistance makes PTFE Pump Diaphragms extremly versatile. They are suitable for use with most chemicals and in elevated temperatures and pressures, and are ideally suited for general service pumps that are used for a vatiety of pumping tasks.

Benefits :

• Longer Lasting diaphragms, which is less replacement times.
• Versatile Diaphragms, which works with most chemicals.
• Lower Cost, which means maintenance and operating cost reduction

Key Features :

• Contains high performance PTFE Sheet.
• Excellent Rib Construction in Diaphragm Designs.
• Chemically resistant and high temperature resistant.
• Greater flex life.

Pure Teflon packing rope is flexible, chemically inert, dimentionally stable with low coefficient of friction and excellent compression resistance properties. It is braided packing made up of pure PTFE yarns.

PTFE 100% square packing is a self-lubricating, chemically inert, non-toxic, and a non-hazardous material. It is very flexible packing and provides more efficient sealing with very low friction characteristics. This packing can be used against corrosive chemicals, solvents, oils and petroleum by products and oxygen service widely used for water handling equipments, liquid oxygen pumps, valves etc

PTFE Sheets are typically of two types, namely Skewed PTFE Sheets and Moulded PTFE Sheets. Widely used in applications where high abrasion resistance is required, chemical resistance, high heat resistance, Oil & Acid resitance, etc.

PTFE is principally used as a gasket material because of it's capability to remain unaffected by the majority of chemicals used in industry. It is also classified, in most cases, as a food grade material, making it acceptable to both medical and food production industries. There are three basic types of PTFE gasket materials. Virgin PTFE , filled PTFE and expanded PTFE .Virgin PTFE is by far the least expensive of the three varieties, and is used in most general applications. Filled PTFE is a gasket material with a virgin PTFE base to which a substance is added during manufacture to improve the sealing characteristics of PTFE . This "filler" usually is glass or graphite particles although ceramics has sometimes been used. The resulting gasket material is strong, yet highly compressible with very good, though not universal, chemical resistance.

Expanded PTFE is virgin PTFE to which a stress resistance has been added by means of molecular rearrangement during manufacture. This process ensures that the molecular chains from which the PTFE is constructed, do not arrange themselves into set patterns. This means that expanded PTFE possesses no structural weakness (grain) and expands and contracts equally in all directions. Because no additives are required, expanded PTFE also possesses the unique chemical resistance of virgin PTFE .
